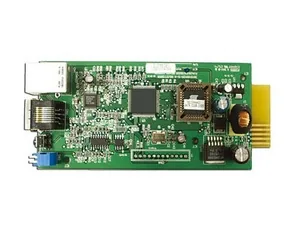

SNMP Card – Connectivity & Support Solutions

Network

SNMP

SNMPv1 protocol support; accepts NMS monitoring aswell as actively sends Trap packets to target hosts.

HTTP

Monitor and set up through network browser with builtinweb server.

Others

Telnet, TFTP, FTP, BOOTP, SMTP, SNTP and WOL.

MIB

Supports RFC1628 and custom defined UPSv4 MIB.

Management

Regular power on and off

Can set up UPS power on and off time.

Regular testing

Battery discharge test to ensure the battery is in goodcondition.

Smart power off

Can send power off signal to connected host activelyif the host computer has the InsightPower Client orSNMP power off proxy installed.

Sensor

Optional environment sensor can integrate ambienttemperature and humidity for total cabinet monitoring.

Diagnosis

Event log

Keep date, time, and event sequence in event log file.

History records

Keep date, time, and UPS parameter data. Can beexported into XLS file for further processing.

Reaction to events

UPS shutdown

Define delay time for UPS power off to avoid deepdischarge.

Email

Send email notification to predefined recipients in caseof power event.
