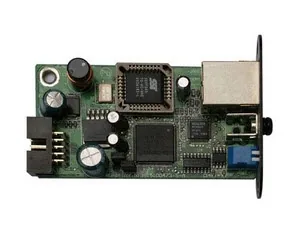

Mini-SNMP Card – UPS Connectivity Solutions

Rýchly prehľad

Convert status and parameter data of your UPS to comply with the standard Modbus protocol

Dostupnosť: Skladom

0,00 €

Convert status and parameter data of your UPS to comply with the standard Modbus protocol

  • SNMP agent and web server implemented for UPS
  • Supports the following protocols: ARP, IP, ICMP, SNMPv1, SNMPv3 USM, UDP, TCP, HTTP, FTP, TFTP, SMTP, BOOTP, SNTP, DN and Telnet
  • Security login by MD5
  • Users level management
  • Firmware upgrade for new features through TFTP
  • Batch configuration through FTP
  • Saves UPS event log and history values in EEPROM
  • Schedules shutdown, restart and test UPS
  • Wake On LAN packet to wakeup PC
  • Sends e-mail and SNMP trap to notify users
  • Provides InsightPower Client software to protect public operating systems
  • Provides InsightPower Manager to monitor all of the UPS information in the network
  • Provides InsightPower EzSetting software to easily configure the first time and upgrade firmware

Network Connection

RJ-45 jack connector

Operation temperature

0 ~ 40°C

Operation humidity

10 ~ 80 %

Power Input

3.3V DC

Power consumption

1 Watt Maximum

Size(L x W)

60.5 mm x 40 mm

Weight

30g

Pin 1

GND

Pin 2

DC (3.3V)

Pin 3

Txd→UPS

Pin 4

Rxd←UPS

Pin 5

NC

Pin 6

NC

Pin 7

NC

Pin 8

NC

Pin 9

NC

Pin 10

NC
