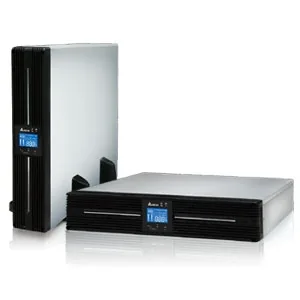

R Series, Single Phase UPS, 1/2/3 kVA

Product was successfully added to your shopping cart.

Amplon R je online UPS s dvojitou konverziou ktorý chráni zariadenia pred možnými problémami s napájaním ako sú prepätia a výpadky. Je k dispozícií v konfigurácií rack/tower a je doporučený pre servery, VoIP, telekomunikácie a siete.

Amplon R je navrhnutý pre dlhú zálohu s pridaním prispôsobeného batériového zdroja.

Vstavaná kvalitná nabíjačka skracuje dobu nabíjania a zvyšuje disponibilnosť.

Využitie: server, telecom, priemysel, sieť, sklad, VoIP, zdravotníctvo

True online double-conversion topology provides zero transfer time to ensure maximum protection of the equipment
Watch-dog design of the DSP (Digital Signal Processor) increases reliability
Cold-start capability provides temporary battery power when the utility power is out
Operating temperature tolerance up to 50°C ensures critical loads’ continuity
The Maintenance Bypass Box offers load continuity during battery replacement or other upgrades
Compact dimensions meet the needs of different rack cabinets
Convertible rack and tower configuration in 2U size cabinet
Excellent local communications through rotatable LCD display
Intelligent management software connectivity via RS232, mini slot or USB port
Wide input voltage range reduces the chance of using the battery and extends battery life
Intelligent battery management sustains battery life and performance
High output power factor of 0.9 provides more real power to critical loads
High input power factor (pf > 0.99) and low harmonic distortion (iTHD < 3%) save upstream investment
Up to 93% AC-AC efficiency and 96% efficiency in ECO mode results in marked energy cost savings
Fan speed control by load level and room temperature optimizes performance

Model

R-1K / R-2K / R-3K

Power Rating

[1K]: 1kVA/0.9kW
[2K]: 2kVA/1.8kW
[3K]: 3kVA/2.7kW

Input
Nominal Voltage
Voltage Range

Frequency
Power Factor
Current Harmonic Distortion

200*/208*/220/230/240 Vac
175 ~ 280 Vac (full load)
80 ~ 175 Vac (50% ~ 100% load)
50/60 Hz ± 10 Hz
> 0.99 (full load)
< 3%

Output
Power Factor
Voltage
Voltage Regulation
Frequency
Voltage Harmonic Distortion
Overload Capability

Receptacle

0.9
200*/208*/220/230/240 Vac
± 1% (linear load)
50/60 Hz ± 0.05 Hz
< 3% (linear load)
< 105%: Continuous
105 ~ 125%: 1 minute
125 ~ 150%: 30 seconds
[1K]: IEC C13 x 4
[2K]: IEC C13 x 6, IEC C19 x 1
[3K]: IEC C13 x 6, Terminal (EMEA model)
[3K]: IEC C13 x 6, IEC C19 x 1 (SEA model)

Efficiency
AC-AC

ECO Mode

[1K]: 91%
[2K/3K]: Up to 93%
[1K]: 95%
[2K/3K]: Up to 96%

Battery
Battery Voltage

Charge Current

[1K]: 24 Vdc
[2K]: 48 Vdc
[3K]: 72 Vdc
4A (up to 8A with optional inbuilt charger)

Audible Noise**

h[1K]: < 40 dB
[2K/3K]: < 43 dB

Display

LCD display and LED indicators

Communication Interfaces
Standard

Mini Slot x 1, RS-232 Port x 1, USB Port x 1

Conformance
Safety

Physical
Dimensions (WxDxH)

Weight

[1K]: 440 x 335 x 88 mm
[2K]: 440 x 430 x 88 mm
[3K]: 440 x 430 x 88 mm
[1K]: 5.3 kg
[2K]: 9.0 kg
[3K]: 9.1 kg

Environment
Operating Temperature
Relative Humidity

0 ~ 50°C***
5 ~ 95% (non-condensing)

* When the UPS is de-rated to 90% of its capacity.
** If the UPS is running at <75% load and in room temperature.
*** When the operating temperature is at 40~50°C, the UPS will be de-rated to 80% of its capacity.

All specifications are subject to change without prior notice.
