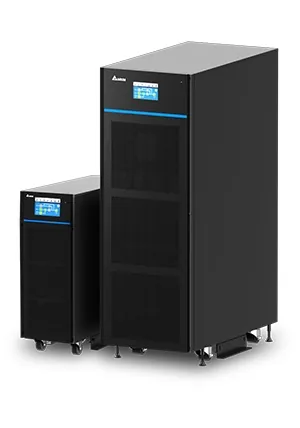

HPH Gen.2 Series UPS, Three Phase, 20/30/40 kVA

Rýchly prehľad

Kombinuje spoľahlivú ochranu, nákladovo efektívny výkon, kompaktné rozmery a vysoký výkon


Najnovší UPS HPH Gen.2 20-40 kVA ponúka kompaktné rozmery s plným menovitým výstupom PF pri 40 stupňoch na optimalizáciu veľkosti UPS. Vstupné PF 0,99 a iTHD < 2 % zaisťujú maximálnu kompatibilitu s upstream zdrojom. Nízke celkové náklady na vlastníctvo sú dosiahnuté účinnosťou > 96 %, režimom recyklácie energie, širšou konfiguráciou množstva batérie a vstavanou 15A nabíjačkou. Okrem toho poskytuje užívateľsky prívetivý dotykový panel, manuálne ochranné zariadenia a kolieska pre jednoduché nasadenie, inštaláciu a obsluhu. Všetky tieto funkcie poskytujú ideálne riešenie pre rôzne malé a stredne veľké dátové centrá a kritické zálohy napájania.

Dostupnosť: Skladom

0,00 €

Easy Deployment and Maintenance with Compact Design

  • Inbuilt casters for easy move-in, positioning and maintenance
  • Inbuilt input / bypass input / output / maintenance bypass breakers for completed distribution panel
  • Slim design and smallest footprint (40 kW in 0.15 m²) to reduce the space wasting

Low Total Cost of Ownership

  • Wide battery quantity configuration (30-46pcs) to optimize the battery solution
  • High AC-AC efficiency over 96% and ECO mode to 99% resulting in marked energy cost savings
  • Low input harmonic distortion (iTHD < 2%) is highly compatible with upstream of UPS power without additional filter or over sizing generator

High Manageability and Flexibility

  • User-friendly 5" color touch screen enables easy local UPS management
  • Optional SNMP IPv6 and Modbus communication cards for remote monitoring
  • Inbuilt 15A charger for long backup solution without additional cost
  • Optional IP42 kit for harsh environment application
  • Front access and easy battery replacement for inbuilt battery models

Model

Long backup model

HPH-20K / HPH-30K / HPH-40K

Inbuilt battery model - batteries inside

HPH-20KB / HPH-30KB / HPH-40KB

Inbuilt battery model - no batteries inside

HPH-20KB-N / HPH-30KB-N / HPH-40KB-N

Power Rating

[20k]: 20 kVA / 20 kW
[30k]: 30 kVA / 30 kW
[40k]: 40 kVA / 40 kW

Input
Nominal Voltage
Voltage Range
Current Harmonic Distortion *


Power Factor
Frequency Range


220/380 Vac, 230/400 Vac, 240/415 Vac (3-phase, 4-wire + G)
305~478 Vac (full load)
≤ 2.5%
≤ 2%
≤ 2%
> 0.99
40~70 Hz

Output
Voltage
Voltage Harmonic Distortion

Voltage Regulation
Frequency
Overload Capacity


220/380 Vac, 230/400 Vac, 240/415 Vac (3-phase, 4-wire + G)
≤ 1.5% (linear load)
≤ 4% (non-linear load)
± 1% (static)
50/60 Hz
≤ 105%: continuously
> 105~≤ 110%: 60 minutes
> 110~≤ 125%: 10 minutes
> 125~≤ 150%: 1 minute
> 150%: 1 second

Display

5” color touch screen

Interface
Standard


External battery temperature detection x1, Output dry contact x4, Input dry contact x2, Parallel port x2, USB Port x1, RS232 Port x1, REPO Port x1, Mini Slot x2

Conformance
Safety


CE, RCM (IEC62040-1, IEC62040-2 Class C2)

Efficiency
AC-AC
ECO Mode


> 96% (Peak efficiency)
99%

Battery
Nominal Voltage
Charge Voltage
Maximum Inbuilt Charger Current
Discharge Time **


± 240 Vdc (default, ± 180 Vdc~± 276 Vdc configurable)
± 272 Vdc (adjustable from 204 V to 312 V)
15 A

[20k]: 20 minutes
[30k]: 14 minutes
[40k]: 9.5 minutes

Environment
Operating Temperature
Relative Humidity
Audible Noise (at one meter)

IP Protection


0~40℃
0~95% (non-condensing)
[20k]: < 50 dB
[30k / 40k]: < 56 dB
IP20 (Standard)
IP42 (Optional for long backup model)

Others
Parallel Redundancy and Expansion
Battery Start


Up to 4 units
Yes

Physical
Dimensions (W x D x H)
Weight


240 x 630 x 650 mm
[20k]: 44 kg
[30k / 40k]: 50 kg

Physical (HPH-B/B-N)
Dimensions (W x D x H)
Weight (B: with batt.)

Weight (B-N: without batt.)


470 x 780 x 1200 mm
[20k]: 334 kg
[30k / 40k]: 340 kg
[20k]: 94 kg
[30k / 40k]: 100 kg

HPH-B: UPS integrated battery model has batteries inside.
HPH-B-N: UPS integrated battery model has no batteries inside.
* When input harmonic distortion is less than 1%.
** UPS at 70% load with internal battery strings.

All specifications are subject to change without prior notice.

Options

  • Battery temperature compensation cable
  • Dust filter
  • IP42 kit for long backup model
  • EPO button kit
  • SNMP IPv6 card
  • Modbus card
  • Relay I/O card
