Úplné riešenie pre spoľahlivú energiu s vysokou dostupnosťou a výkonom.

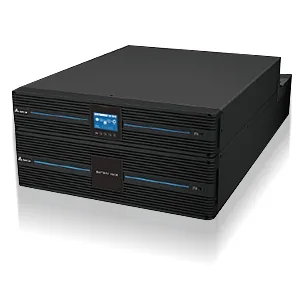

Amplon RT Series 5-20kVA je online UPS s dvojitou konverziou, ktorá poskytuje najlepší dizajn vo svojej triede v kompaktnej veľkosti 2U, vysokú hustotu energie, systémovú efektívnosť a všestrannú konfiguráciu, ktorá spĺňa požiadavky zákazníkov. Jednotný výstupný účinník maximalizuje kapacitu pre kritickejšie záťaže, zatiaľ čo vynikajúce úspory energie sa dajú dosiahnuť na základe účinnosti AC-AC až 96,5% a 99% v režime ECO. UPS séria RT 5-20kVA je okrem toho prvá na trhu, ktorá ponúka štandardné skrinky na Li-ion externé batérie, ktoré poskytujú lepšiu hustotu energie a udržateľnosť. Spolu s paralelnou kapacitou až štyroch jednotiek je nová séria ideálnym malým zdrojom energie pre servery, dátové centrá, telekomunikácie a výroby.
Využitie: server, sieť, bankovníctvo, POS, bezpečnosť
Model
RT-5K
RT-6K
RT-8K
RT-10K
RT-15K3P
RT-20K3P
Power Rating : 5kVA / 5kW
Power Rating : 6kVA / 6kW
Power Rating : 8kVA / 8kW
Power Rating : 10kVA / 10kW
Power Rating : 15kVA / 15kW
Power Rating : 20kVA / 20kW
Input
Voltage Range : RT-5/6/8/10K
Voltage Range : RT-15/20K3P
Frequency
Power Factor
iTHD
Input connection : RT-5/6/8/10K
Input connection : RT-15/20K3P
100 ~ 280V (Single phase, 2-wire + G)
100 ~ 175V with linear de-rating 50 ~ 100%
138 ~ 485V (Three phase, 4-wire + G)
138 ~ 305V with linear de-rating 40 ~ 100%
40 ~ 70 Hz
> 0.99 (full load)
< 3%
Input terminal x 1
Input terminal x 1, Bypass Input terminal x 1
Output
Power Factor
Voltage : RT-5/6/8/10K
Voltage : RT-15/20K3P
Frequency
Voltage Harmonic Distortion
Overload Capability: RT-5/6/8/10K
Overload Capability: RT-15/20K3P
Unity
200, 208, 220, 230, 240 Vac (Single phase)
380/400/415 Vac (Three phase), or 220/230/240 Vac (Single phase)
50/60Hz ±0.05Hz
≤ 2% (linear load)
≤ 105%: continuous
106 ~ 125%, 5 min.
126 ~ 150%, 1 min.
> 150%: 500ms
≤ 105%: continuous
106 ~ 125%: 2 min.
126 ~ 150%: 30 sec
> 150%: 200ms
Receptacle
Standard Runtime Model
Extended Runtime Model
[RT-5/6K] : C13x6, C19x2, Terminal x 1, Load bank: C19x1
[RT-8/10K] : C13x6, C19x4, Terminal x 1, Load bank: C19x1
[RT-5/6/8/10K] : Terminal x 1, Load bank: Terminal x 1
[RT-15/20K3P] : Terminal x 1
Efficiency
AC-AC
ECO Mode
[RT-5/6/8/10K] : Up to 95.5%
[RT-15/20K3P] : Up to 96.5%
Up to 99%
Battery Voltage
Standard Runtime Model
Extended Runtime Model
[RT-5/6K] : 192 Vdc
[RT-8/10K] : 240 Vdc
[RT-15/20K3P] : ±144 Vdc*, ±192 ~ 264 Vdc
Charger Current
Standard Runtime Model
Extended Runtime Model
[RT-5/6K] : 1A (default)
[RT-8/10K] : 1.5A (default)
[RT-15/20K3P] : Up to 8A
Up to 8A
Typical Backup Time
Standard Runtime Model – 75% load
Standard Runtime Model – Full load
Extended Runtime Model
[RT-5K] : 7.5 min.
[RT-6K] : 5.5 min.
[RT-8K] : 9 min.
[RT-10K] : 6 min.
[RT-15/20K3P] : Depending on different configurations required by customers
[RT-5K] : 5 min.
[RT-6K] : 3 min.
[RT-8K] : 5 min.
[RT-10K] : 3.5 min.
Depending on different configurations required by customers
Audible Noise
[RT-5/6K] : 48 dB
[RT-8/10K] : 50 dB
[RT-15/20K3P] : 54 dB
Display
Graphical and multi-lingual LCD
Communication Interfaces
MINI Slot x 1, Parallel Port** x 2, USB Port x 1, RS232 Port*** x 1, RS485 Port x 1, REPO/ROO Port x 1, Dry Contact x 4
Dimensions (W x D x H)
Standard Runtime Model
Extended Runtime Model
[RT-5/6K] : 440 x 665 x 176 mm
[RT-8/10K] : 440 x 750 x 218 mm
[RT-5/6K] : 440 x 430 x 88.2 mm
[RT-8/10K] : 440 x 565 x 88.2 mm
[RT-15/20K3P] : 440 x 730 x 88.2 mm
Weight
Standard Runtime Model
Extended Runtime Model
[RT-5/6K] : 54 kg
[RT-8/10K] : 85.5 kg
[RT-5/6K] : 10.9 kg
[RT-8/10K] : 15.2 kg
[RT-15K3P] : 22 kg
[RT-20K3P] : 22.5 kg
Environment
Operating Temperature
Relative Humidity
0 ~ 55° C****
5 ~ 95% (non-condensing)
All specifications are subject to change without prior notice.
Run Time
Standard Model
Power Rating | Battery | Run time at different load (mins) | |||
25% | 50% | 75% | 100% | ||
5 kVA (UPS502R2RT0B0B8) | Internal | 35.6 | 15.6 | 8.9 | 5.6 |
External x 1 | 68.0 | 31.0 | 19.0 | 13.0 | |
External x 2 | 106.0 | 51.0 | 32.0 | 22.6 | |
External x 3 | 145.5 | 71.5 | 45.5 | 32.5 | |
External x 4 | 185.0 | 91.5 | 59.0 | 42.5 | |
5 kVA (UPS502R2RT0B035) | External x 1 | 61.0 | 27.0 | 16.5 | 11.0 |
External x 2 | 96.0 | 45.5 | 28.0 | 19.5 | |
External x 3 | 131.0 | 63.5 | 40.0 | 28.5 | |
External x 4 | 166.5 | 82.0 | 52.5 | 37.5 | |
6 kVA | Internal | 24.3 | 9.6 | 5.6 | 3.1 |
External x 1 | 50.0 | 22.0 | 13.0 | 8.5 | |
External x 2 | 79.5 | 37.0 | 22.5 | 15.5 | |
External x 3 | 109.0 | 52.0 | 32.5 | 22.5 | |
External x 4 | 137.0 | 67.0 | 42.5 | 30.0 | |
8 kVA | Internal | 36.3 | 15.6 | 9.3 | 5.1 |
External x 1 | 71.0 | 27.0 | 14.5 | 9.6 | |
External x 2 | 119.0 | 49.5 | 27.5 | 17.5 | |
External x 3 | 167.5 | 73.5 | 42.5 | 27.5 | |
External x 4 | 217.0 | 98.0 | 58.0 | 39.0 | |
10 kVA | Internal | 30.2 | 11.9 | 6.2 | 3.7 |
External x 1 | 53.0 | 19.4 | 10.5 | 7.4 | |
External x 2 | 91.0 | 36.0 | 19.5 | 12.5 | |
External x 3 | 130.0 | 54.8 | 30.5 | 19.5 | |
External x 4 | 170.0 | 74.0 | 42.5 | 28.0 |
Extended Model
Power Rating | Battery | Run time at different load (mins) | |||
25% | 50% | 75% | 100% | ||
5 kVA | External x 1 (GES161B107035) | 35.2 | 15.2 | 7.8 | 5.1 |
External x 2 (GES161B107035) | 61.0 | 27.0 | 16.5 | 11.0 | |
External x 3 (GES161B107035) | 96.0 | 45.5 | 28.0 | 19.5 | |
External x 4 (GES161B107035) | 131.0 | 63.5 | 40.0 | 28.5 | |
External x 1 (GES201B109035) | 50.0 | 18.5 | 10.3 | 7.3 | |
External x 2 (GES201B109035) | 123.5 | 53.2 | 30.0 | 19.3 | |
External x 3 (GES201B109035) | 199.5 | 91.0 | 54.2 | 36.0 | |
External x 4 (GES201B109035) | 276.4 | 130.0 | 79.5 | 54.5 | |
6 kVA | External x 1 (GES161B107035) | 24.3 | 9.6 | 5.6 | 3.1 |
External x 2 (GES161B107035) | 50.0 | 22.0 | 13.0 | 8.5 | |
External x 3 (GES161B107035) | 79.5 | 37.0 | 22.5 | 15.5 | |
External x 4 (GES161B107035) | 109.0 | 52.0 | 32.5 | 22.5 | |
External x 1 (GES201B109035) | 39.0 | 14.2 | 8.2 | 6.0 | |
External x 2 (GES201B109035) | 100.5 | 41.4 | 22.5 | 14.5 | |
External x 3 (GES201B109035) | 164.4 | 72.5 | 42.0 | 27.5 | |
External x 4 (GES201B109035) | 228.5 | 105.0 | 63.0 | 42.5 | |
8 kVA | External x 1 | 36.3 | 15.6 | 9.3 | 5.1 |
External x 2 | 71.0 | 27.0 | 14.5 | 9.6 | |
External x 3 | 119.0 | 49.5 | 27.5 | 17.5 | |
External x 4 | 167.5 | 73.5 | 42.5 | 27.5 | |
10 kVA | External x 1 | 30.2 | 11.9 | 6.2 | 3.7 |
External x 2 | 53.0 | 19.4 | 10.5 | 7.4 | |
External x 3 | 91.0 | 36.0 | 19.5 | 12.5 | |
External x 4 | 130.0 | 54.8 | 30.5 | 19.5 |
