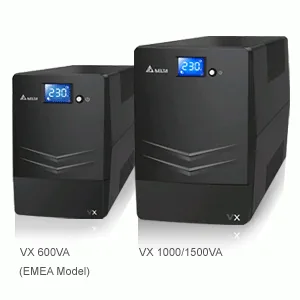

VX Series, Line-interactive, 600/1000/1500VA

Product was successfully added to your shopping cart.

VX séria je UPS technológie Line-interactive v prevedení TOWER pre množstvo aplikácií.

Zdroj UPS VX je navrhntý tak, aby poskytoval základnú ochranu pre obvody dátových a PC sietí.

VX poskytuje ochranu 24/7 s automatickou detekciou frekvencie. Vstupné napätie má široký rozsah, takže je vhodný aj pre náročnejšie aplikácie.

Zdroj má kompaktné rozmery a je ľahko umiestniteľný do malých priestorov jako aj do kancelárií pri PC nakoľko je veľmi tichý.

Využitie: server, sieť, security, bankomaty

The integrated AVR (Automatic Voltage Regulation) stabilizes the output voltage for better power quality.
Excellent microprocessor control enables accurate detection of power frequency for higher reliability.
Wide input voltage range allows the UPS to work in harsh electrical environments and reduces battery discharging time.
Batteries are automatically recharged even when the UPS is in off mode and the UPS can start without mains (Cold-Start).
UPS is able to restart automatically while utility power is recovering.
Surge protection defends your critical load against damage.
Supplied with IEC output power cable for convenient connection to your load.
Several standard IEC 320 output sockets simplify the connectivity to computer and IT peripherals.
Compact size saves more space for critical equipment.
Standard USB communication port enhances monitoring and manageability.
Touch screen LCD for a clear display of UPS information.
Advanced UPS management software provides remote shutdown and control.

Model

VX-600VA / VX-1000VA / VX-1500VA

Power Rating
VX-600VA
VX-1000VA
VX-1500VA

600VA / 360W
1000VA / 600W
1500VA / 900W

Input
Nominal Voltage
Voltage Range
Frequency Range

230 VAC
170-280 VAC
50/60 Hz (Auto sensing)

Output
Voltage
Frequency Range
Waveform (Batt. Mode)
Receptacle

230VAC ± 10% (Battery mode)
50/60 Hz ± 1 Hz
Simulated Sinewave
[VX-600VA]: IEC 320 C13 x4
[VX-1000VA]: IEC 320 C13 x4
[VX-1500VA]: IEC 320 C13 x6 (EMEA model), IEC 320 C13 x4 (SEA model)

Battery
Battery Type & Number

Typical Recharge Time
Cold Start

[VX-600VA]: 12V/7 Ah x1
[VX-1000VA]: 12V/7 Ah x2
[VX-1500VA]: 12V/9 Ah x2
6-8 hours to 90%
Yes

Indicator
LCD

Input voltage, output voltage, battery capacity, load level and UPS status

Interface
Standard

1 USB port

Efficiency
Operating Temperature
Altitude
Relative Humidity
Noise Level

0~40ºC
0-1000m
0-90% RH (Non-condensing)
[VX-600VA]: < 40 dB
[VX-1000VA]: < 40 dB
[VX-1500VA]: < 45 dB

Conformance
Safety & EMC

Physical
VX-600VA

VX-1000VA

VX-1500VA

Dimensions (W x D x H): 101 x 300 x 142 mm
Net Weight: 4.4 Kg
Dimensions (W x D x H): 130 x 320 x 182 mm
Net Weight: 8.2 Kg
Dimensions (W x D x H): 130 x 320 x 182 mm
Net Weight: 10.4 Kg

Prílohy

VX Series 600/1000/1500 VA UPS (Leaflet) – for EMEA Veľkosť (280.43 KB)

VX Series 600/1000/1500 VA UPS (Leaflet) – for SEA Veľkosť (232.1 KB)

VX Series 600/1000/1500 VA UPS (Quick Guide) – for EMEA Veľkosť (1.53 MB)

VX Series 600/1000/1500 VA UPS (Quick Guide) – for SEA Veľkosť (1.5 MB)
