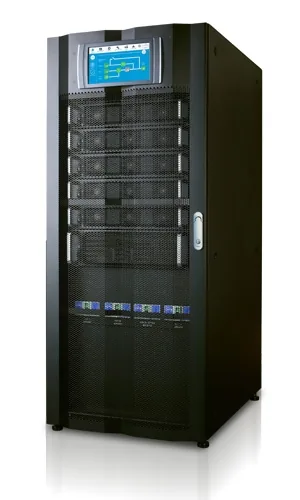

V tomto IT intenzívnom svete, kde je intenzívny dátový prenos riadený aplikáciami typu cloud, 4G / 5G a streamovanie médií, čelia IT manažéri výzvam zvyšovania hustoty výkonu rack-u v obmedzenom priestore dátových centier. Inovatívne modulárne technológie spoločnosti Delta od spoločnosti UPS poskytujú odpoveď na dopyt zákazníkov po najvyššej dostupnosti, vynikajúcom výkone a vysokej účinnosti. Úplne nový UPS série Delta Modulon DPH 80/120 kVA dosahuje špičkovú hustotu výkonu 20 kW na modul vo výške 2 U, ponúka najmenšiu stopu a najlepšie využitie priestoru. UPS séria Modulon DPH je ideálna modulárna ochrana napájania pre všetky kritické IT aplikácie s malým balíkom, flexibilitou a bezproblémovou integráciou.
Využitie: datacenter, telecom, priemysel, sieť, bezpečnosť, laboratórium. zdravotníctvo, metro, bankovníctvo
Excellent Power Performance
- The industry’s leading power technology offers up to 120kW within all equipped breakers in 162.8 kW/m3 which supports the top/bottom cable entry without additional cabinet to achieve the best utilization compared with its peers.
- High AC-AC efficiency over 96% and ECO mode to 99% resulting in marked energy cost savings.
- Green mode featuring a load aggregation function optimizes system efficiency.
Ultimate Availability
- Fully modularized design and hot-swappable key modules ensure Mean Time To Repair (MTTR) close to zero without downtime risk.
- Redundant components and dual CAN bus delivers highest system availability and avoids single point of failure.
- Key components aging pre-warning mechanism to provide the proactive reliability to minimize the human error and reduce the downtime risk (optional).
High Manageability
- User-friendly 10″ color touch screen enables easy local UPS management.
- Environment information such as temperature, humidity and transmits signals from environment sensor can be integrated into the UPS for easy monitoring via the LCD of the UPS.
- If the UPS is equipped with an external battery management system, the battery information can be integrated into the UPS and monitored via the LCD of the UPS.
Model
DPH 80 System / DPH 120 System
Power Rating
DPH 80 System
DPH 120 System
20/40/60/80kVA
20/40/60/80 kW
Power Module Quantity : Up to 4 units
20/40/60/80/100/120kVA
20/40/60/80/100/120kW
Power Module Quantity : Up to 6 units
Input
Nominal Voltage
Voltage Range
Current Harmonic Distortion
Power Factor
Frequency Range
220/380V, 230/400V, 240/415V (3-phase, 4-wire + G)
305~478 Vac (full load)
≤ 2% *
> 0.99
50/60 Hz
Output
Voltage
Voltage Harmonic Distortion
Voltage Regulation
Frequency
Overload Capability
220/380V, 230/400V, 240/415V (3-phase, 4-wire + G)
≦ 1% (linear load)
≦ 4% (non-linear load)
±1% (static)
50/60 Hz
≦ 125% : 10 minute
≦ 150% : 1 minute
>150%: 1 second
Display
10” color touch screen
Interface
Standard
External battery temperature dry contact x 4, External switch/breaker status dry contact x 4, Output dry contact x 6, Input dry contact x 4, Parallel port x 2, USB Port (Type A x 2
Conformance
Safety
CE (IEC62040-1, IEC62040-2 (C3: standard, C2: optional)
Efficiency
AC-AC Mode
ECO Mode
> 96% (Peak efficiency)
99%
Battery
Nominal Voltage
Charge Voltage
Protection of Battery Deep Discharge
±240 Vdc (default, ±180Vdc~±276Vdc configurable)
±272Vdc (adjustable from 204V to 312V)
Yes
Environment
Operating Temperature
Relative Humidity
Audible Noise (at one meter)
IP Protection
0 ~ 40℃
95% (non-condensing)
< 65 dB
IP20
Others
Parallel Redundancy and Expansion
Battery Start
Module and system redundancy, Maximum 8 units
Yes
Physical
Dimensions (W x D x H)
Weight : UPS System (without power modules)
Weight : 20kW Power Module (optional)
600 x 850 x 1445 mm
DPH 80 System : 150 kg
DPH 120 System : 162 kg
18 kg
* When input voltage total harmonic distortion input is less than 1%
All specifications are subject to change without prior notice.
