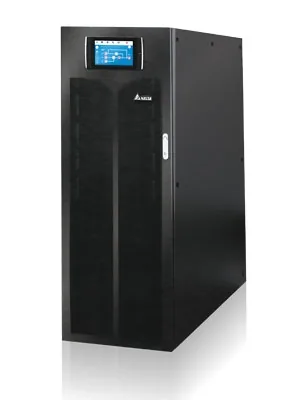

Vysoko spoľahlivý a efektívny záložný zdroj pre stredné podnikové operácie
Úplne nový rad Ultron HPH 160-200kVA je skutočnou online UPS s dvojitou konverziou, ktorá ponúka najlepšiu kombináciu výkonu a účinnosti vo svojej triede pre stredné dátové centrá a ďalšie kritické aplikácie. Vďaka odborným znalostiam spoločnosti Delta v oblasti vývoja a výskumu a vynikajúcim technickým schopnostiam ponúka HP Ultron HPH účinnosť až 96,5% AC-AC, nízku iTHD <3% a vysoký vstupný účinník> 0,99, čo vedie k významným úsporám celkových nákladov na vlastníctvo (TCO). Vrcholy vysoko spoľahlivého dizajnu UPS série Ultron HPH zahŕňajú redundanciu kľúčových komponentov a proaktívne zisťovanie stavu batérie. Vďaka kombinácii vynikajúcej dostupnosti a výkonu je Ultron HPH 160-200kVA tou najlepšou voľbou pre ochranu napájania udržateľných stredných obchodných operácií.
Best-in-Class Power Performance and Efficiency
- High AC-AC efficiency of up to 96.5% and ECO mode to 99% for significant energy cost savings
- Low harmonic pollution (iTHD < 3%) and high input power factor (> 0.99) reduces upstream investment costs
Assured Reliability
- Optional redundant controller supports dual CAN bus and ring connection for high system availability
- Proactive battery aging detection for high reliability
- Easy event log check via touch panel and firmware upgrade via USB port
Greater Flexibility
- Parallel expansion and redundancy up to 8 units, 1.6MVA of total power capacity
- Flexible battery configuration 30~46 pieces optimizes battery investment
- Supports either top or bottom cable entry in the single cabinet. The unique fixed symmetric terminal design avoids cable bending issues to enhance cable reliability
Superior Manageability
- User-friendly 10” colored LCD with touch panel enables easy local UPS management
- Environment information such as security, water, fire and temperature can be integrated into the UPS for easy monitoring via the LCD of the UPS
- If the UPS is equiped with Delta’s battery management system, the battery information can be integrated into the UPS and monitored via LCD
Model
HPH-160K / HPH-200K
Power rating
HPH-160K : 160kVA* / 150kW
HPH-200K : 200kVA / 200kW
Input
Nominal voltage
Voltage range
Current harmonic distortion
Frequency
220/380 Vac, 230/400 Vac, 240/415 Vac (3-phase, 4-wire + G)
176 ~ 276Vac (full load)
≦ 3% **
40 ~ 70 Hz
Output
Voltage
Voltage Harmonic Distortion
Frequency
Frequency Regulation
Overload Capability
220/380 Vac, 230/400 Vac , 240/415 Vac (3-phase, 4-wire + G)
≦ 0.5% (linear load)
50/60 Hz
±0.05 Hz (battery mode)
≦ 125% : 10 minutes
≦ 150% : 1 minute
Display
10” color touch screen
Interface
Standard
Optional
RS232 x 1, Parallel port x 2, USB x 3, RS485 x 1,
Relay I/O card slot x 1, REPO x 1, Input dry contact x 4,
Output dry contact x 6, Battery temperature sensor x 4,
External switch detection x 4, RJ45 x 1, Ethernet x 1
Relay I/O card, Battery cabinet temperature sensor cable
Conformance
Safety
CE, RCM
Efficiency
AC-AC Mode
ECO Mode
Up to 96.5%
99%
Battery
Nominal Voltage
Charge Voltage
Battery number configuration
±240 Vdc
±272 Vdc (adjustable from 204V to 312V)
30 ~ 46pcs (default: 40pcs)
Environment
Operating Altitude
Operating Temperature
Audible Noise
Relative Humidity
1000 meters (without derating)
0 ~ 40℃
<70 dB
0 ~ 95% (non-condensing)
Others
Parallel Redundancy and Expansion
Remote Emergency Power Off
Battery Start
Maximum 8 units
Yes
Yes
Physical
Dimensions (WxDxH)
Weight
600 x 1100 x 1600 mm
HPH-160K: 339kg
HPH-200K: 376kg
* The power rating is adjustable from default 160kVA to 150kVA via touch panel.
** When input vTHD is less than 1%
All specifications are subject to change without prior notice.
