DPH Series, Three Phase UPS, 50 – 500kVA 2022

Rýchly prehľad

In this IT intensive world with heavy data traffic driven by cloud, 4G/5G and media streaming applications, IT managers are facing the challenges of increasing rack power density and limited datacenter space. Delta’s innovative modular UPS technologies provide the answer to customers’ demand for high power density, high power performance, and ultimate availability. The brand-new Delta Modulon DPH series UPS 500kVA achieves the industry’s leading power density of 55.6kVA per module, offering the smallest footprint and best space utilization. The Modulon DPH 500kVA UPS is the ideal modular power protection for MW datacenters to achieve total cost of ownership (TCO) optimization.

Dostupnosť: Skladom

0,00 €

Množstvo:

The world’s highest power density 500kVA in a single rack providing ultimate MW power protection with leading power performance and superior reliability

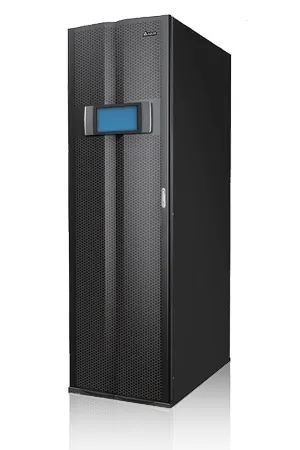

Modulon-DPH-series-UPS-50-500kVA-photo1_en

Applications

Excellent Power Performance

The industry‘s leading power density per module at 55.6kVA in 3U space, and the smallest footprint for 500kVA in a single rack, to achieve the best utilization compared with its peers
High AC-AC efficiency up to 96.5% and ECO mode to 99% resulting in marked energy cost savings
Green mode featuring a load aggregation function optimizes system efficiency

Ultimate Availability

Fully modularized design and hot-swappable key modules ensure Mean Time To Repair (MTTR) close to zero without downtime risk
Redundant components and dual CAN bus delivers highest system availability and avoids single point of failure
Modular UPS grows with your business by parallel expansion up to 8 units for 4MVA of total power capacity

High Manageability

User-friendly 10” color touch screen enables easy local UPS management
Environment information such as security, water, fire, and temperature can be integrated into the UPS for easy monitoring via the LCD of the UPS
If the UPS is equipped with an external battery management system, the battery information can be integrated into the UPS and monitored via the LCD of the UPS

Model

DPH 50 / DPH 100 / DPH 150 / DPH 200 / DPH 250 / DPH 300 / DPH 350 / DPH 400 / DPH 450 / DPH 500

Power rating

DPH 50: 50kVA / 50kW
DPH 100: 100kVA / 100kW
DPH 150: 150kVA / 150kW
DPH 200: 200kVA / 200kW
DPH 250: 250kVA / 250kW
DPH 300: 300kVA / 300kW
DPH 350: 350kVA / 350kW
DPH 400: 400kVA / 400kW
DPH 450: 450kVA / 450kW
DPH 500: 500kVA / 450kW

Power Module Quantity

DPH 50: 1
DPH 100: 2
DPH 150: 3
DPH 200: 4
DPH 250: 5
DPH 300: 6
DPH 350: 7
DPH 400: 8
DPH 450: 9
DPH 500: 9

Input
Nominal voltage
Voltage range
Current Harmonic Distortion
Power Factor
Frequency Range

220/380V, 230/400V, 240/415V (3-phase, 4-wire + G)
176 ~ 276 Vac (full load)
< 3%*
> 0.99
40 ~ 70 Hz

Output
Voltage
Voltage Harmonic Distortion
Voltage Regulation
Frequency
Overload Capability

220/380V, 230/400V, 240/415V (3-phase, 4-wire + G)
≤ 2% (linear load)
±1% (static)
50/60 ± 0.05 Hz
≤ 125% : 10 minutes
≤ 150% : 1 minute

Display

10” color touch screen

Interface
Standard

Optional

RS232 x 1, Parallel port x 4, USB x 3,
Modbus x 1, Smart card slot x 1, REPO x 1,
EPO x 1, Input dry contact x 4, Output dry contact x 6,
Battery temperature sensor x 4,External switch detection x 4,
RJ45 x 1, Ethernet x 1, Relay I/O card,
Battery cabinet temperature sensor cable

Conformance
Safety

Efficiency
AC-AC Mode
ECO Mode

Up to 96.5%
99%

Battery
Nominal Voltage
Charge Voltage
Protection of Battery Deep Discharge

±240 Vdc
±272 Vdc (adjustable from 204V to 312V)
Yes

Environment
Operating Temperature
Relative Humidity
Audible Noise

IP Protection

0 ~ 40℃
0 ~ 90% (non-condensing)
DPH 50-400 : <65 dB
DPH 450-500 : <80 dB
IP 20

Others
Parallel Redundancy and Expansion
Emergency Power Off
Battery Start

Module and system redundancy, Maximum 8 units
Remote (default) and local (optional)
Yes

Physical
Dimensions (WxDxH)
Weight

600 x 1100 x 2000 mm
DPH 50: 353 kg
DPH 100: 389 kg
DPH 150: 425 kg
DPH 200: 461 kg
DPH 250: 497 kg
DPH 300: 533 kg
DPH 350: 569 kg
DPH 400: 605 kg
DPH 450: 641 kg
DPH 500: 641 kg

Remark : The power module’s power rating is adjustable to either 50kVA or 55.6kVA via touch panel.

* When input vTHD is less than 1%.

All specifications are subject to change without prior notice
