Predstavujeme novú generáciu modulárnych UPS systémov navrhnutých pre maximálnu disponibilnosť, vynikajúci výkon, vysokú efektivitu ideálne pre stredne veľké datacentrá.
UPS séria Modulon DPH sú modulárne UPS často používané pre kritické operácie pretože ponúkajú väčší výkon o 25 % v porovnaní s UPS systémami s energetickým faktorom 0,8. DPH séria je určená pre tie najprísnejšie požiadavky dátových centier, poskytuje najväčšiu možnú disponibilnosť. Vďaka modulárnej konštrukcií, true on-line, dvojitej konverzií, trojfázový systém Modulon DPH ponúka škálovateľnú architektúru pre optimálne napájacie vzory. Poskytuje 25 až 200 kW neprerušiteľnej energie s dodatočnou 800 kW kapacitou v paralelnom zapojení.
DPH škálovateľná architektúra je k dispozícií v 19″ priestore a podporuje aj vertikálnu a horizontálnu expanziu pre všestranné usporiadanie inštalácie. Optimálne umiestnenie je nakoniec rozhodnuté na potrebách datacentra nie limitáciami UPS.
Vstavaná redundancia garantuje stáli zdroj energie pre kritické operácie a dizajn plne odolný proti chybám, séria Modulon DPH ponúka chladiace a energetické moduly. Priemerný čas na opravu sa blíži k nule vďaka funkcií hot-swap pre všetky dôležité komponenty. V prípade zlyhania hlavného modulu, plná logická kontrola umožní systému synchronizáciu a prepnutie na záložný zdroj bez prerušenia prevádzky.
DPH séria má najvyššie hodnotenia efektivity vo svojej triede. Toto trojfázové UPS poskytuje maximálnu kapacitu , lepšiu ochranu napájania v závislosti na záťaž energetickej siete. Škálovateľnosť, disponibilnosť a efektivita odlišuje DPS sériu ako najlepšie riešenie pre ochranu napájania a distribúciu vo vašich datacentrách.
The Modulon DPH is designed in modern IT aesthetics aligned with Delta InfraSuite datacenter solutions.
Využitie: datacentrá, telecom, priemysel, sieť, security, laboratória, zdravotníctvo, metro, bankovníctvo
The Modulon DPH supports ultimate availability to ensure the continuity of mission critical operations.
The datacenter constitutes the critical load in the daily operations of the organization. Cost of downtime due to critical load failure is extreme and runs between USD4,000 to USD6,000 per minute or even more. To achieve the highest availability possible for the datacenter, it is vital for the most reliable products or solutions supported by the shortest or even zero Mean Time To Repair (MTTR).
The fully fault-tolerant design provides self redundancy to the control mechanism, cooling and power modules. Full control logic allows the system to self-synchronize in the event of main module failure and automatically switch to the backup for assured continuous operation.
Furthering the advantages, the hot-swappable functionality of critical components and modules improve the serviceability of the UPS system thereby reducing MTTR close to zero to assure maximum uptime and ultimate availability in the datacenters.
As illustrated, the Modulon DPH can run under inverter mode and bypass mode to sustain uninterruptible power supply to critical load:
In the event of STS module removal, the Modulon DPH still functions under inverter mode (normal mode without bypass utility backup). During failure in normal mode, such as over temperature, overload, short circuit, abnormal output voltage, or low battery, the Modulon DPH smoothly transfers over to bypass mode.
In addition, the Modulon DPH has a wide input voltage range of -45% to +25% and narrow output voltage regulation window to cope with harsh utility conditions, seamlessly providing stable power supply to the load. In the event of overload, the Modulon DPH supports 125% overload protection for up to ten minutes and one minute at 150%.
The Modulon DPH assures exceptional reliability and maximizes uptime to deliver six-nines availability contributing to the best-in-class practice to reduce Total Cost of Ownership (TCO).
Scalable architecture allows you to optimize cost expenditure to meet your power demands and deliver uninterrupted services in line with the business growth without over-sizing the power capacity.
The plug and play design of power module supports vertical and horizontal expansion of power capacity at the right time with the right investment. In the situation of a single rack enclosure, the system can vertically scale from 25kW to 75/150/200kW and achieve N+1 or N+X redundancy in the same rack. As business demands grow, the flexibility of the Modulon DPH allows for parallel expansion of up to four units without requiring additional hardware.
The Modulon DPH offers the advantages you need without the high initial investment costs or sacrificing power capacity so as not to create investment excess due to capital waste.
Excellent power performance and efficiency directly translate into significant reduction of operational costs.
Two key trends have developed in the world of datacenter operations – demand for power and the cost of that power. Today’s management is facing growing pressure to optimize performance for sustainability and growth.
Delta’s UPS solutions deliver one of the highest power performance and efficiency ratings available while reducing cost. The Modulon DPH delivers fully rated power (power factor=1, kVA=kW) providing the maximum power capacity to the load. Compared to UPS systems with output of PF=0.8 and PF=0.9, the DPH supplies 25% and 11% more power, respectively. Other than that, the fully rated power factor is supported by a “stronger” inverter design providing better power protection and quality to loads.
The Modulon DPH demonstrates excellent power performance with low total input harmonic distortion (iTHD<3%). Its reduced load pollution increases power quality, optimizes generator sizing to increase your investment savings, reduces installation costs, and extends the life of valuable equipment.
The Modulon DPH features excellent AC-AC efficiency up to 96% at half load and places itself among the highest in its class. In addition to energy saving, higher efficiency levels also mean less heat dissipation, giving way to lower cooling costs.
Excellent power performance and efficiency lower operation costs significantly. The Modulon DPH combines these benefits to provide high performance, efficient power protection to maximize operational savings for any datacenter.Hot plug and hot swap simplify the maintenance process.
The Modulon DPH hot plug and hot swap architecture makes best use of a modularity design for 50% faster time of repair compared to traditional UPS systems. Plug and play modularity also eliminates the risk of second fault occurrence caused by complex failure checking and removing processes. The reliability of maintenance and service is guaranteed, further assuring the system availability.
Designed for management ease, the Modulon DPH is fully equipped with user-friendly monitoring and controls in various languages. A big graphic LCD screen provides the needed control for all communication and command options at the tip of your fingers to monitor and control functions on a single page view. Direct event log viewing helps quickly diagnose events without additional hardware requirements. Up to 3,000 event logs can be recorded.
Delta UPSentry 2012 communicates with UPS through physical interface RS232 and USB for UPS manageability. Also works with Shutdown Agent 2012 to protect a group of PCs, workstations, or servers. Delta New Shutdown Agent cooperates with SNMP card or UPSentry 2012 to shut down multi-servers in various operating system and virtual machine gracefully to prevent possible data corruption. Furthermore, Modulon DPH can be monitored and controlled together with other datacenter equipment by Delta InfraSuite Manager (EMS 3000) as a total datacenter control and monitoring solution.
Delta intelligent battery management system can sustain battery lifespan and the
capacity of battery backed up through the functions of:
Model

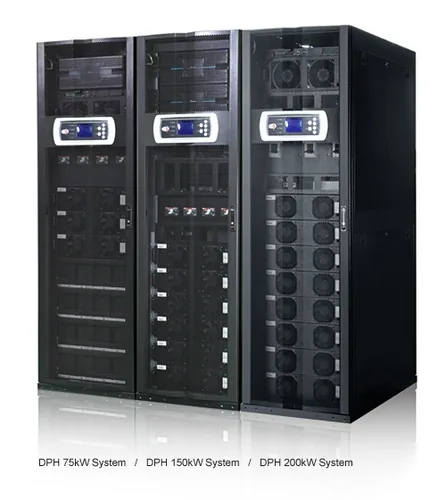

DPH 75kW System
DPH 150kW System
DPH 200kW System
Power Rating
DPH 75kW System
DPH 150kW System
DPH 200kW System
25, 50, 75 kVA
25, 50, 75, 100, 125, 150 kVA
25, 50, 75, 100, 125, 150, 175, 200 kVA
Frame
DPH 75kW System
DPH 150kW System
DPH 200kW System
75 kW
150 kW
200 kW
Input
Nominal Voltage
Voltage Range
Current Harmonic Distortion
Power Factor
Frequency
380/220V, 400/230V, 415/240V (3 phase, 4-wire +G)
176~276 / 305~477 Vac *
< 3% **
> 0.99
50/60 Hz
Output
Voltage
Output Power Factor
Voltage Harmonic Distortion
Voltage Regulation
Frequency
Frequency Regulation
Overload Capacity
380/220V, 400/230V, 415/240V (3 phase, 4-wire +G)
1 (kVA=kW)
≦ 2% (linear load)
± 1% (static)
50 or 60 Hz
± 0.05 Hz
≦ 125%: 10 minutes
≦ 150%: 1 minute
Interface
Standard
Optional
System communication port x 1,
LCM port x 1, Parallel port x 2,
Smart slot x 2, Output dry contact x 6,
Input dry contact x 2,
Battery dry contact x 2, REPO
SNMP IPv6 card, ModBus card, Relay I/O card,
Battery cabinet temperature sensor cable, Battery cabinet status
detection kit
Conformance
Safety & EMC
BSMI, CE, EN62040-1
Other Features
Parallel Redundancy & Expansion
Emergency Power Off
Battery start
Event Log
Module and system redundancy
Maximum 4 units
Local and remote
Yes
3000 records
Efficiency
AC-AC
ECO Mode
96% (Tested by TÜV)
99%
Environment
Operating Temperature
Relative Humidity
Audible Noise (at one meter)
0 ~ 40°C
0 ~ 95% (non-condensing)
< 62 dBA
Dimensions (WxDxH)
600 x 1090 x 2000 mm
Weight
UPS System
Power Module
Rack-mount PDC
Battery Module
75kW System: 310 kg
150kW System: 320 kg
200kW System: 350 kg
75kW System: 32 kg
150kW System: 32 kg
200kW System: 32 kg
75kW System: 32 kg
150kW System: 32 kg
200kW System: N/A
75kW System: 29.5 kg
150kW System: N/A
200kW System: N/A
System Frame
25kW Power Module
75kW System: 3
150kW System: 6
200kW System: 8
Maximum Capacity
Breaker Module (for Rack-mount PDC)
Battery Module
75kW System: 1
150kW System: 2
200kW System: N/A
75kW System: 6
150kW System: 12
200kW System: N/A
75kW System: 4
150kW System: N/A
200kW System: N/A
All specifications are subject to change without prior notice.
